OB3362
GENERAL DESCRIPTION
The OB3362 is a highly integrated and high performance LEDdriver that optimized for LCD backlight application. It integrates a boost driver and 12 channels of current balancer that optimized to drives multi LED arrays, and thus provides a high performance LED backlight solution with minimized BOM count.
The OB3362 contains a PWM boost driver which uses current mode control and fixed frequency operation. The operation frequency can be programmed by setting external resistor value at RI pin.
The OB3362 integrates 12 channels current balancer with up to 70mA current capability per channel and it can achieve ±3% matching accuracy among LED strings. The minimum voltage of current source is regulated to as lower as 400mV so that benefits the efficiency and improver the IC thermal performance.
The OB3362 supports external PWM dimming and internal burst dimming mode which allow flexible control of the backlight luminance. The LED current is directly modulated by external PWM duty cycle when PWM dimming mode is selected.The LED current can be adjusted by an external DC voltage when internal burst dimming mode is selected. OB3362 is offered in 28-pin TSSOP/HSOP/SOP.
FEATURES
■ 10V gate drive, better MOS compatibility
■ High Efficiency and Compact Size
■ 6V to 30V Input Voltage Range
■ ±3% Matching Accuracy Between 12 LED Strings Control Current
■ 100KHz~600KHz Operating Frequency
■ Internal/External PWM Dimming
■ Very Low Standby Power
■ Programmable Over Voltage Protection
■ Under Voltage Lockout(UVLO)
■ Open/Short LED Protection
■ Thermal Shutdown
■ Status Output
APPLICATIONS
■ LCD Monitor
■ LCD TV
■ Flat panel display

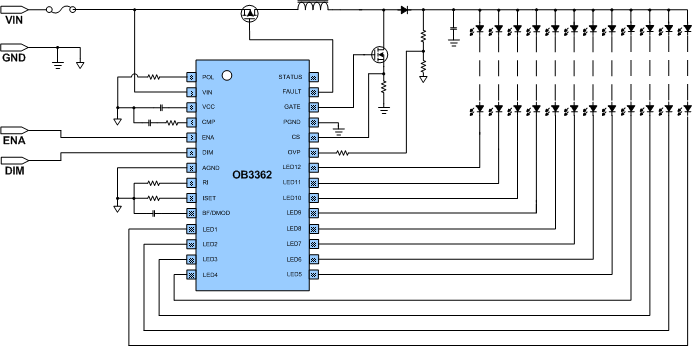

TYPICAL APPLICATION
